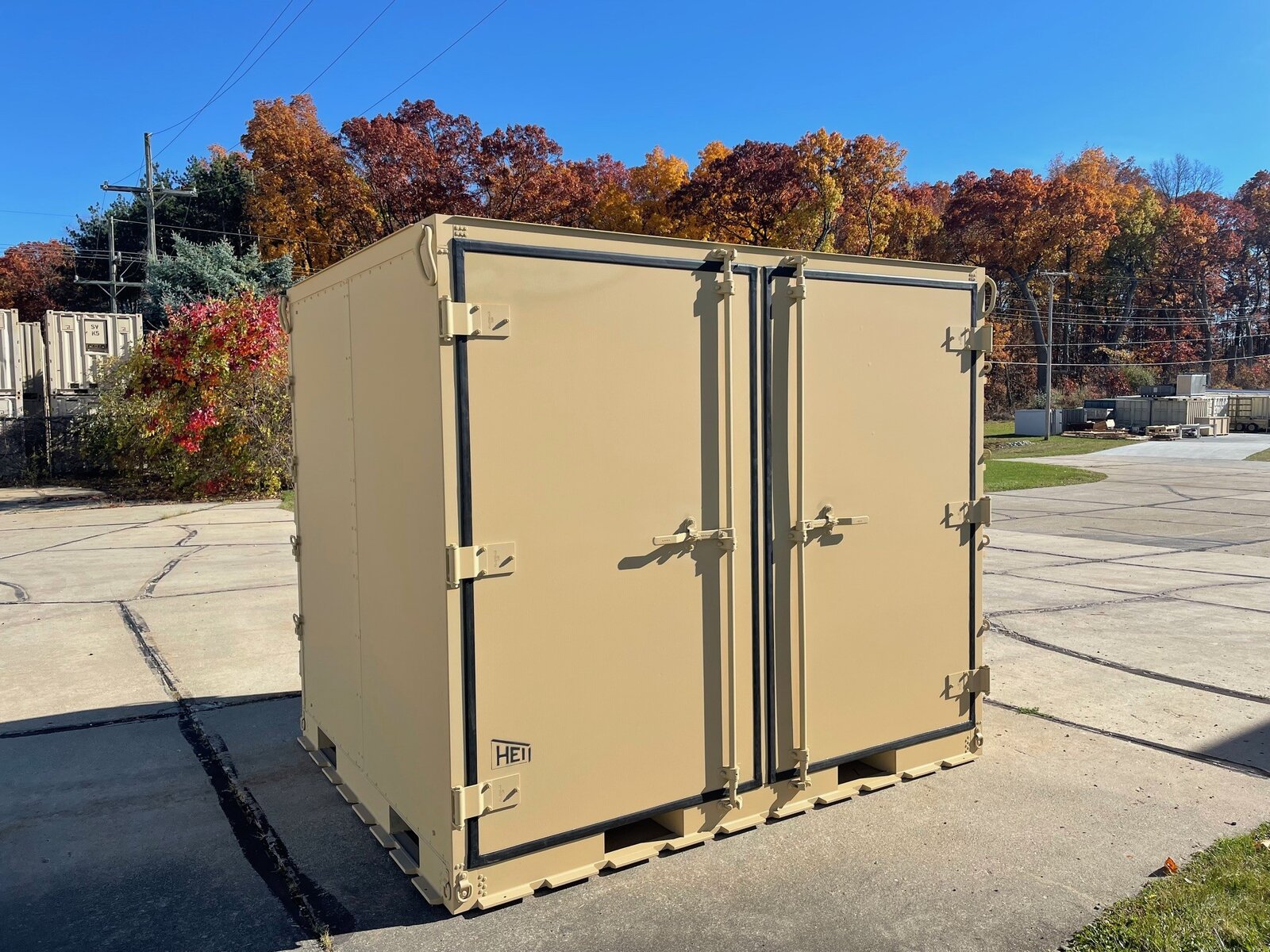

Expeditionary Air Containers
Over 20 variants of purpose-built containers — from empty storage to expandable containers with canvas or internally customized mission solutions. All EACs have integral 463L compatible base rails, forkliftable from all 4 sides, and ATTLA certified for internal air transport on USAF aircraft.
- ATTLA certified for internal use on U.S. Air Force Aircraft
- Integral 463L pallet
- Top lift capable
- Fork lift pockets on all sides
- Winching rings at base corners
- Anti-racking door locks
- Multiple add on options – shelving, divider panels, dehumidifier, hazardous material access door, casters, tow bar, etc.
- Standard and Expandable Options
HEI specializes in tailoring a customized solution to meet your mission requirements. Available customizations include purpose-built shelving, weapon storage, workshops, refrigeration and more.
Container Options
| Type | Part Number | Size | Doors | Center Wall | Interior Cube Capacity |
|---|---|---|---|---|---|

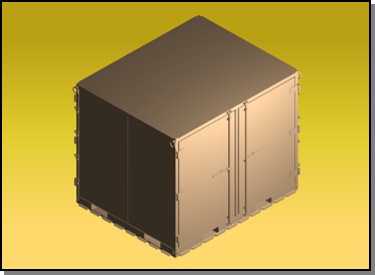

| 90 Standard |
20940-00X
|
108” x 88” x 90” | 4 doors (2 on each long side) | Yes | 394 cu ft |
| 90 Standard Open |
20943-00X
|
108” x 88” x 90” | 4 doors (2 on each long side) | No | 395 cu ft |
| 90 Stock |
20942-00X
|
108” x 88” x 90” | 4 doors (2 on each short side) | Yes | 391 cu ft |

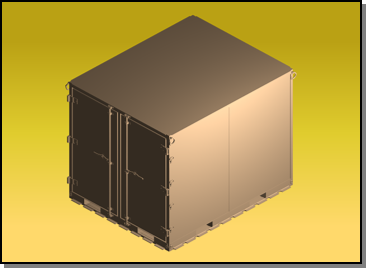

| 90 Stock Open |
20923-00X
|
108” x 88” x 90” | 2 doors (2 on one short side) | No | 395 cu ft |

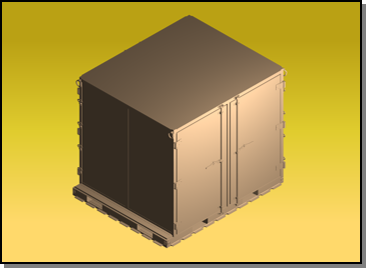

| 90 Aisle |
20941-00X
|
108” x 88” x 90” | 4 doors (2 on each long side) | Yes | 368 cu ft |
| 90 Aisle Open |
20981-00X
|
108” x 88” x 90” | 4 doors (2 on each long side) | No | 368 cu ft |

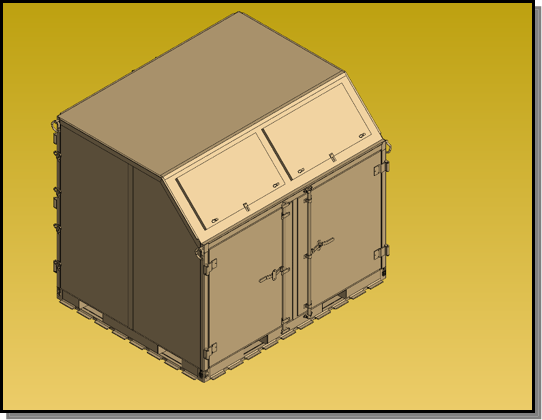

| 90 Slant |
20944-00X
|
108” x 88” x 90” | 4 doors (2 on each long side, 2 flip up doors on slant) | Yes | 377 cu ft |
| 90 Aisle Slant |
20945-00X
|
108” x 88” x 90” | 4 doors (2 on each long side, 2 flip up doors on slant) | Yes | 355 cu ft |

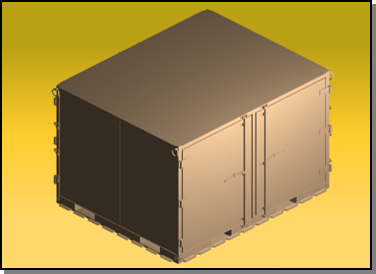

| 80 Standard |
20840-00X
|
108” x 88” x 80” | 4 doors (2 on each long side) | Yes | 344 cu ft |

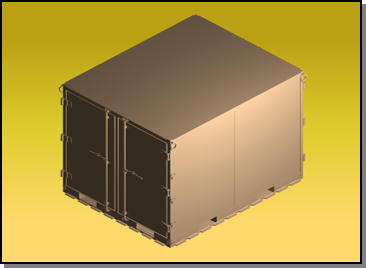

| 80 Stock |
20842-00X
|
108” x 88” x 80” | 4 doors (2 on each short side) | Yes | 344 cu ft |
| 80 Stock Open |
20823-00X
|
108” x 88” x 80” | 2 doors (2 on one short side) | No | 348 cu ft |

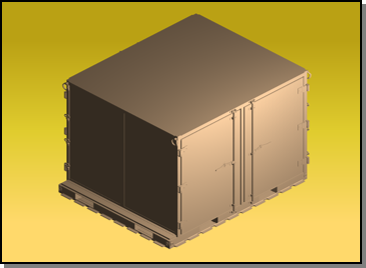

| 80 Aisle |
20841-00X
|
108” x 88” x 80” | 4 doors (2 on each long side) | Yes | 323 cu ft |

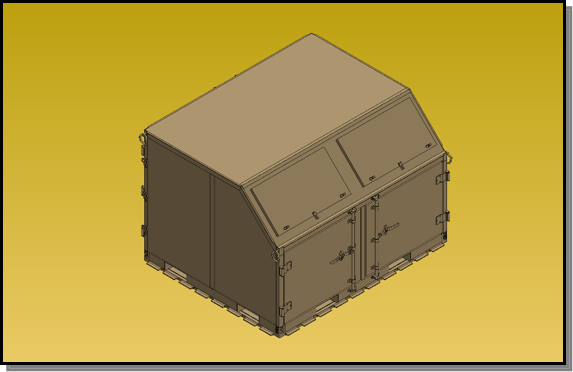

| 70 Slant |
20744-00X
|
108” x 88” x 70” | 4 doors (2 on each long side, 2 flip up doors on slant) | Yes | 282 cu ft |

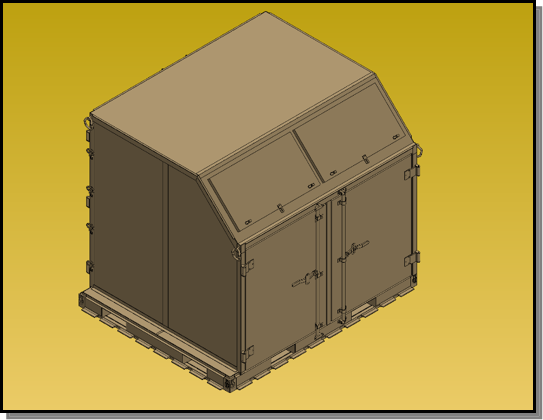

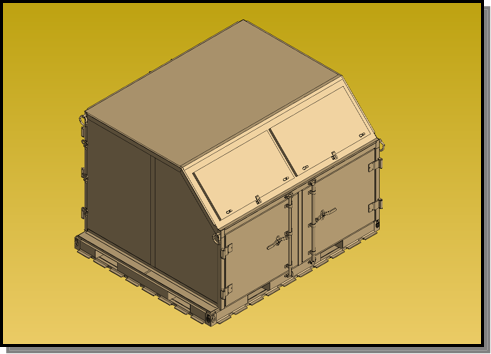

| 70 Aisle Slant |
20745-00X
|
108” x 88” x 70” | 4 doors (2 on each long side, 2 flip up doors on slant) | Yes | 266 cu ft |

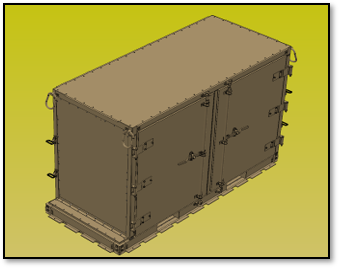

| 70 Aisle – Half Pallet |
20729-00X
|
108” x 48” x 70” | 2 doors (2 on one long side) | No | 145 cu ft |

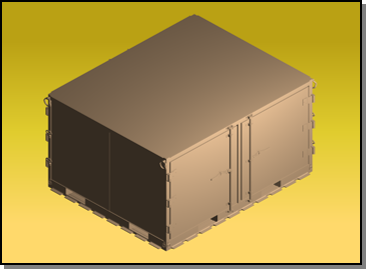

| 60 Standard |
20640-00X
|
108” x 88” x 60” | 4 doors (2 on each long side) | Yes | 249 cu ft |

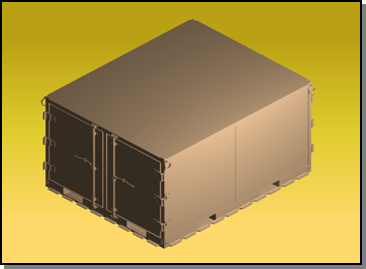

| 60 Stock |
20642-00X
|
108” x 88” x 60” | 4 doors (2 on each short side) | Yes | 249 cu ft |

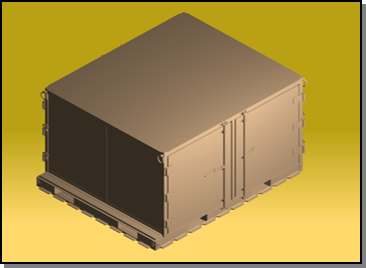

| 60 Aisle |
20641-00X
|
108” x 88” x 60” | 4 doors (2 on each long side) | Yes | 235 cu ft |
| 90 Expandable |
|
108” x 88” x 90” | 0, 1, or 2 doors on a short side (2 fold down floors on long side) | Yes No No No |
1250 cu ft |
Color Options
Expandable EAC Configurations
The EEAC is an expandable version of the EAC® 90 Container. When stowed the EEAC occupies one pallet position. Highland Engineering offers 2 styles of EEACs. The first style is with external frame and canvas and includes a thermal fly. The second style is with an internal frame and canvas.

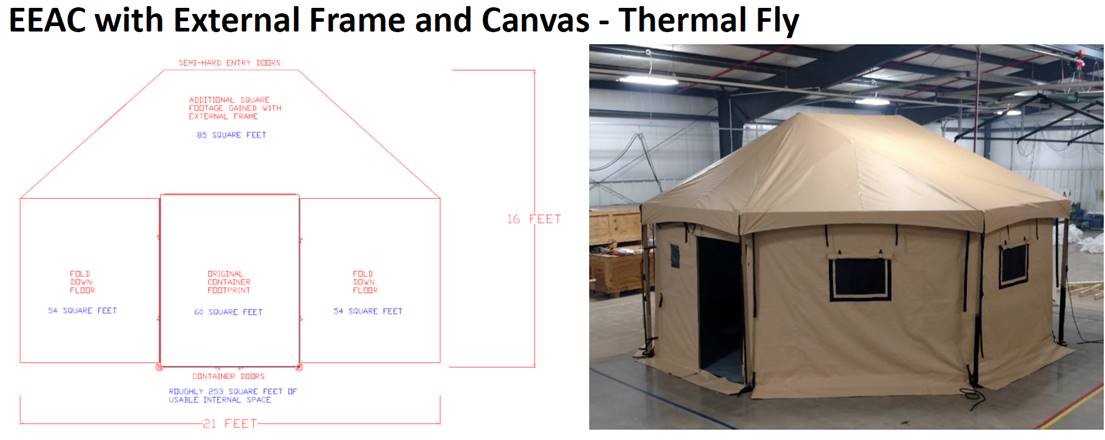

When the EEAC with the external frame is fully deployed, it provides 253 square feet of enclosed space. The walls on the long side of the closed container fold down to serve as floors in the deployed state. The EEAC with external frame can be deployed by 4 personnel in 30 minutes. The interior space can be used for virtually anything; field kitchen, shower facility, laundry facility, latrine facility, workshop, etc.) The canvas of the EEAC can be customized with windows, doors, and ECU ports depending on the mission.

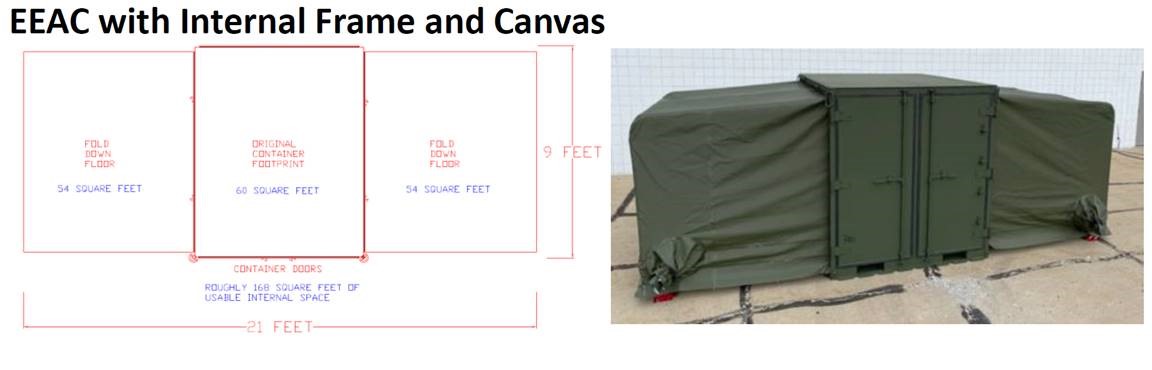

When the EEAC with the internal frame is fully deployed, it provides 168 square feet of enclosed space. The walls on the long side of the closed container fold down to serve as floors in the deployed state. The EEAC with internal frame can be deployed by 2 personnel in 15 minutes. The interior space is customizable to what the mission requires. The canvas of the EEAC can be customized with windows, doors, and ECU ports depending on the mission.
