Joint Airlift Micro SCIF

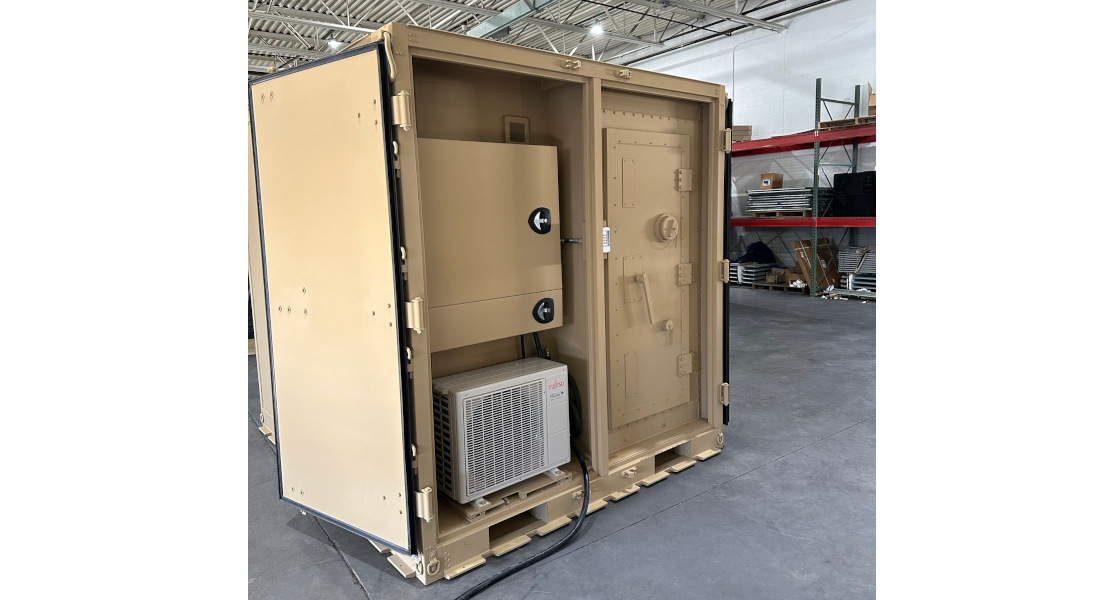

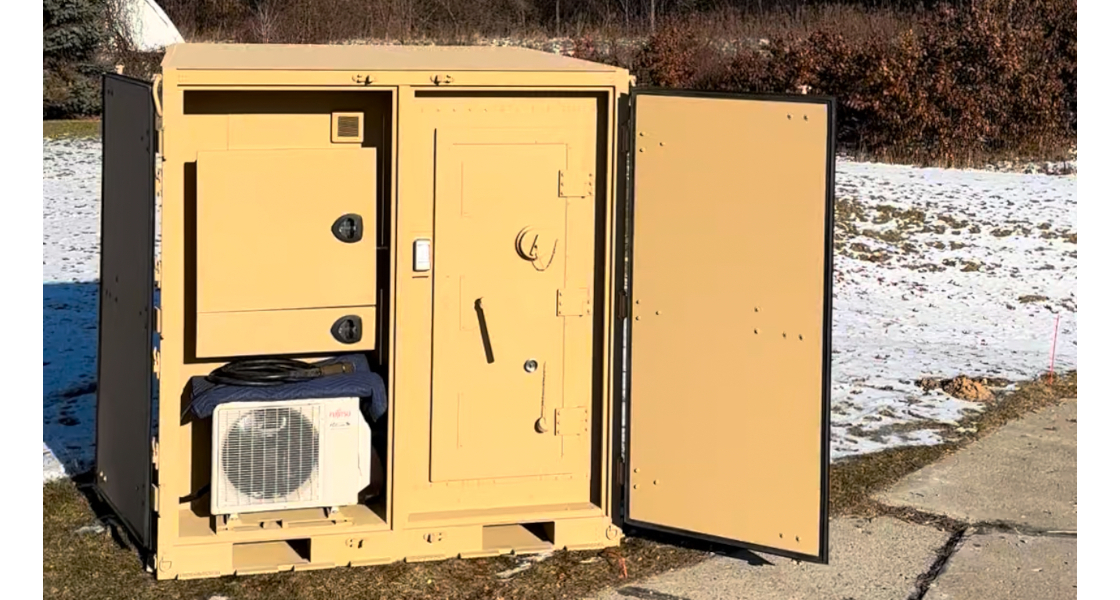

The Joint Airlift Micro SCIF (JAMS) is a fully accreditable SCIF based within an Expeditionary Airlift Container (EAC). With the JAMS being based in an EAC the JAMS is ATTLA certified for internal air transport. The EAC system interfaces with the aircraft palletized cargo handling rails and locks – no added restraint required. The JAMS is a single pallet positon SCIF offering unmatched TEMPEST protection. Because the JAMS facilities meet or exceed all ICD 705 requirements, including STC 50 acoustic protection and over 100dB of RF shielding, they can be swiftly accredited as SCIFs, SAPFs, DDFs, or T-SCIFs. Once the JAMS facility is placed, it can be operational in less than 10 minutes to provide workstations to two personnel. All they need to do is connect power and communication cables and they will be mission ready.

  • Fully Accreditable SCIF/SAPF
  • ATTLA-certified for Internal Air Transport

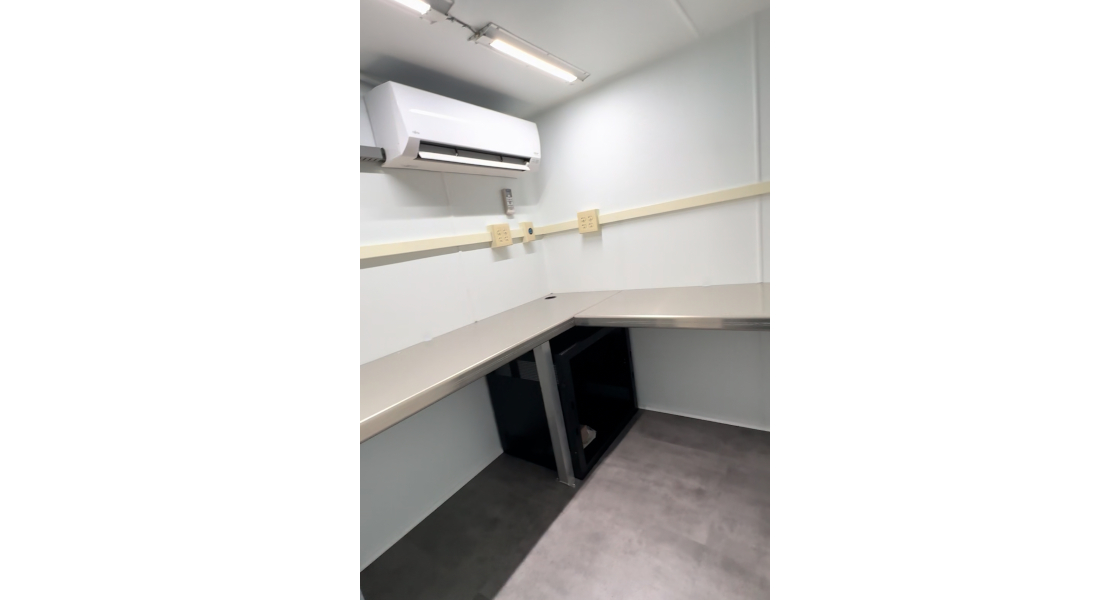

  • Two Workstations
  • Overall Dimensions (Stowed): 108” X 88” X 90”
  • Under 4,400 lbs.
  • Complete TEMPEST Mitigations
  • Exceeds 100dB of RF Shielding
  • Power Filtering
  • Fiber Waveguide Pass-Through
  • STC 50 Performance (No Sound Masking Required)
  • Mini-Split HVAC
  • 60-Amp Single Power POC
  • Kaba Mas X-10
  • Shore Power Connection
  • Data/Comm Wiring
  • Power & Pathway for Intrusion Detection System (IDS) & Access Control System (ACS)

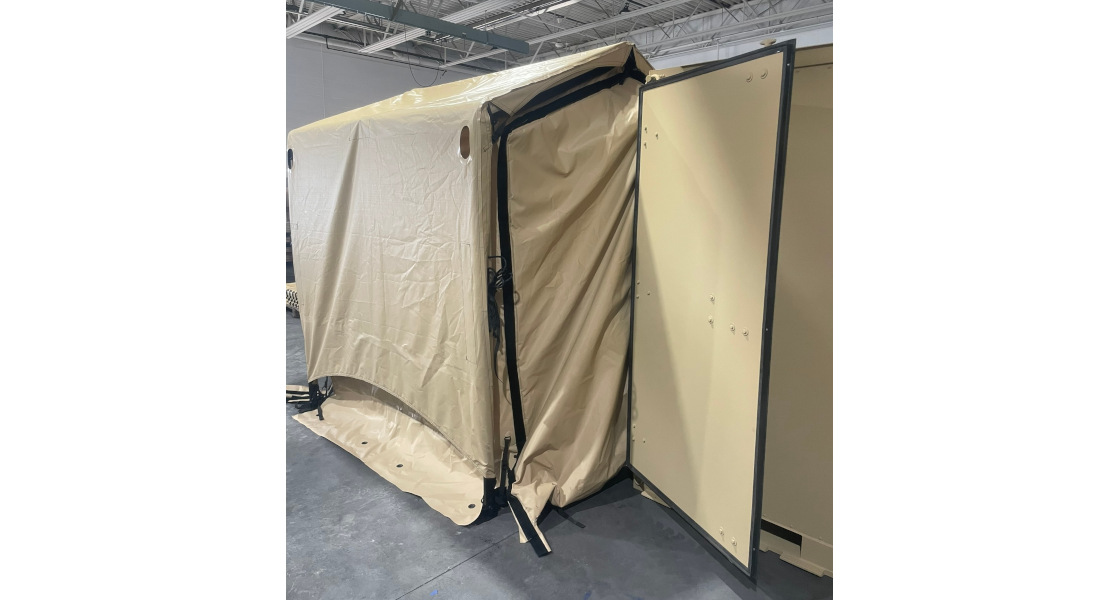

  • Entry Vestibule and Boot Connections to Shelters Available

More Info
  • Part Name: Joint Airlift Micro SCIF (JAMS)
  • Part Number: 701-EAC-JAMS
