Expeditionary Fuel Airlift System

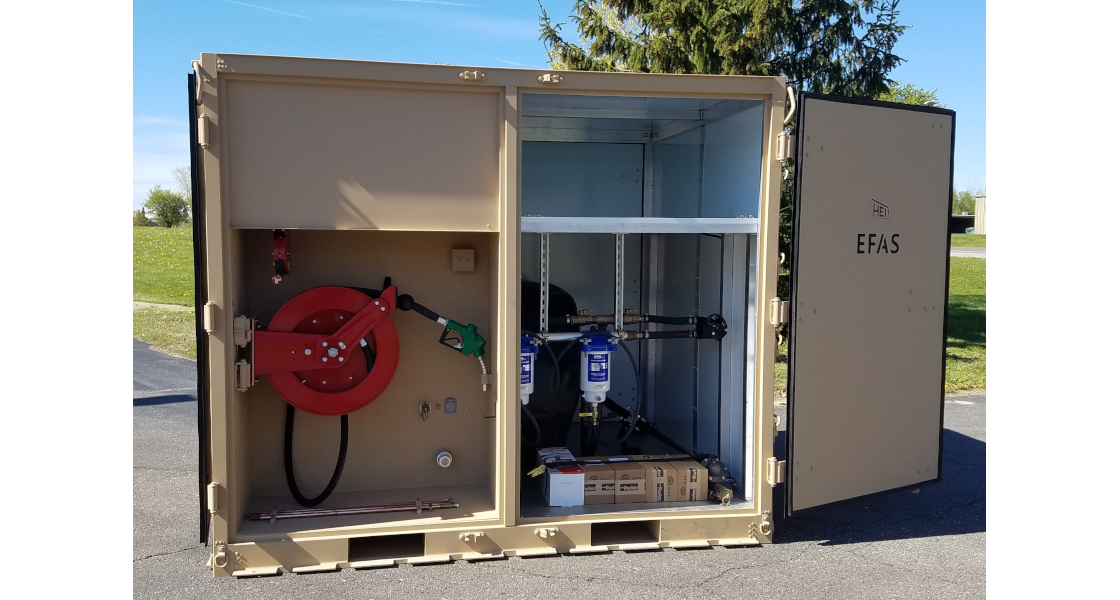

The Expeditionary Fuel Airlift System (EFAS) is a single pallet position expeditionary fuel system. The EFAS is built within an Expeditionary Airlift Container and interfaces with the aircraft palletized cargo handling system rails and locks – additional restraint is not required. The EFAS is certified by ATTLA for internal air transport. The EFAS is fielded and proven. The EFAS gives you the ability to fly with 500 gallons of fuel and then once in theater the ability to dispense the fuel from either the internal tank or other external tanks.
Additional Features:

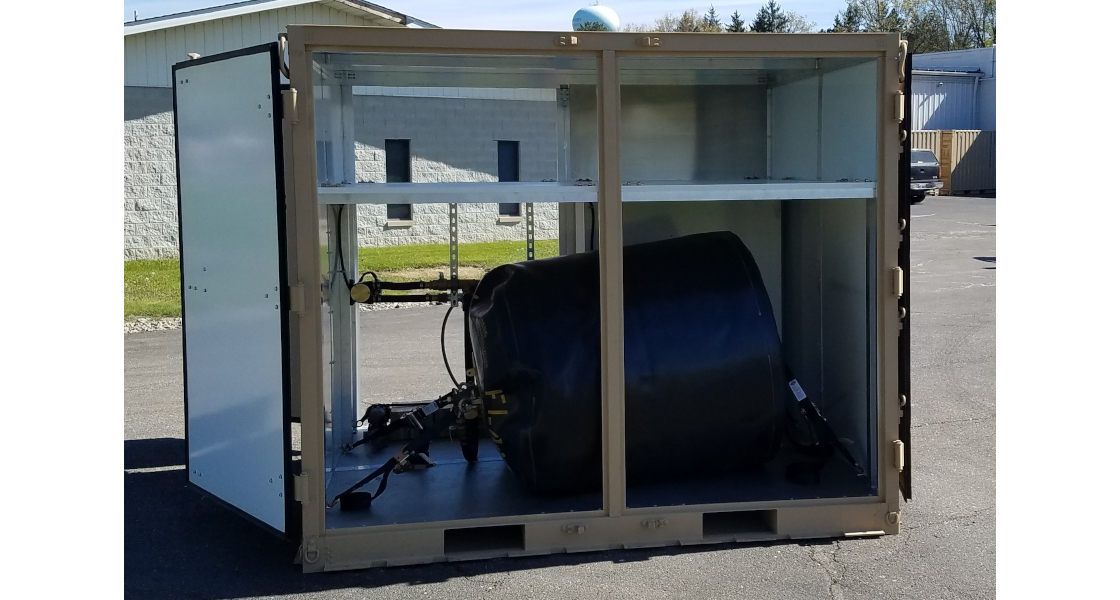

- Initial fuel storage – 500 gallons
- Integral fuel dispensing pump
- Dispenses under pressure from internal tank or external tank
- 24 VDC pump providing approximately 25 GPM

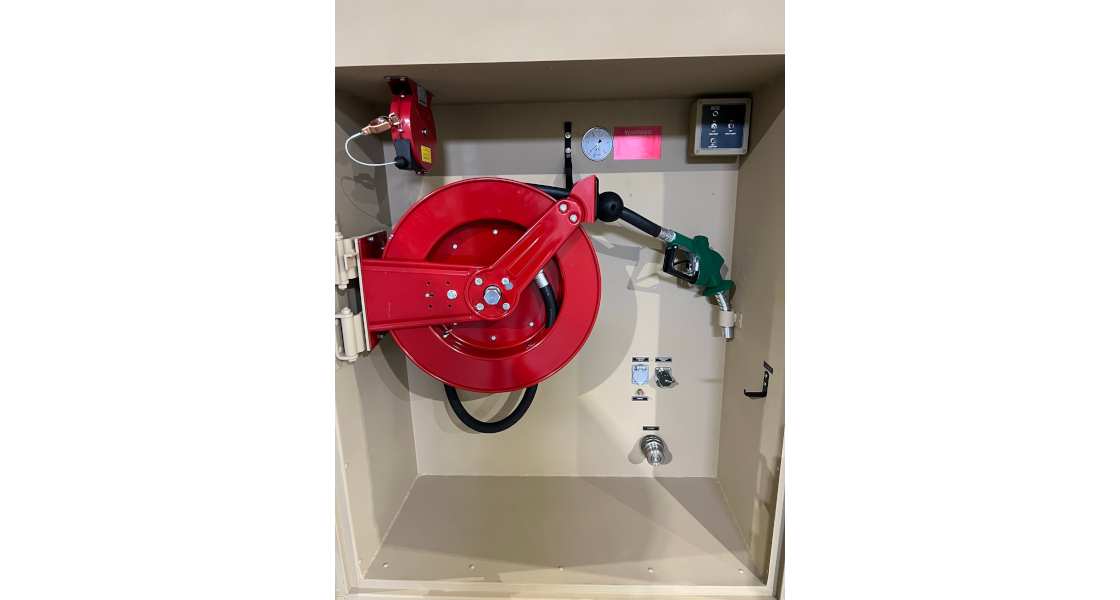

- Spring-retractable fuel dispensing reel with 50’ of heavy duty hose line
- Spring-retractable ground cable reel with 50’ of ground wire
- External fuel source inlet hose – 25’ long
- Dual power connections – user selectable
- 24 VDC NATO Slave plug with 25’ power cord
- 115 VAC operation with 50’ cable
- Industry standard aviation grade dual filtration system
- Complete support and accessories package
- Complete set of fittings and adapters
